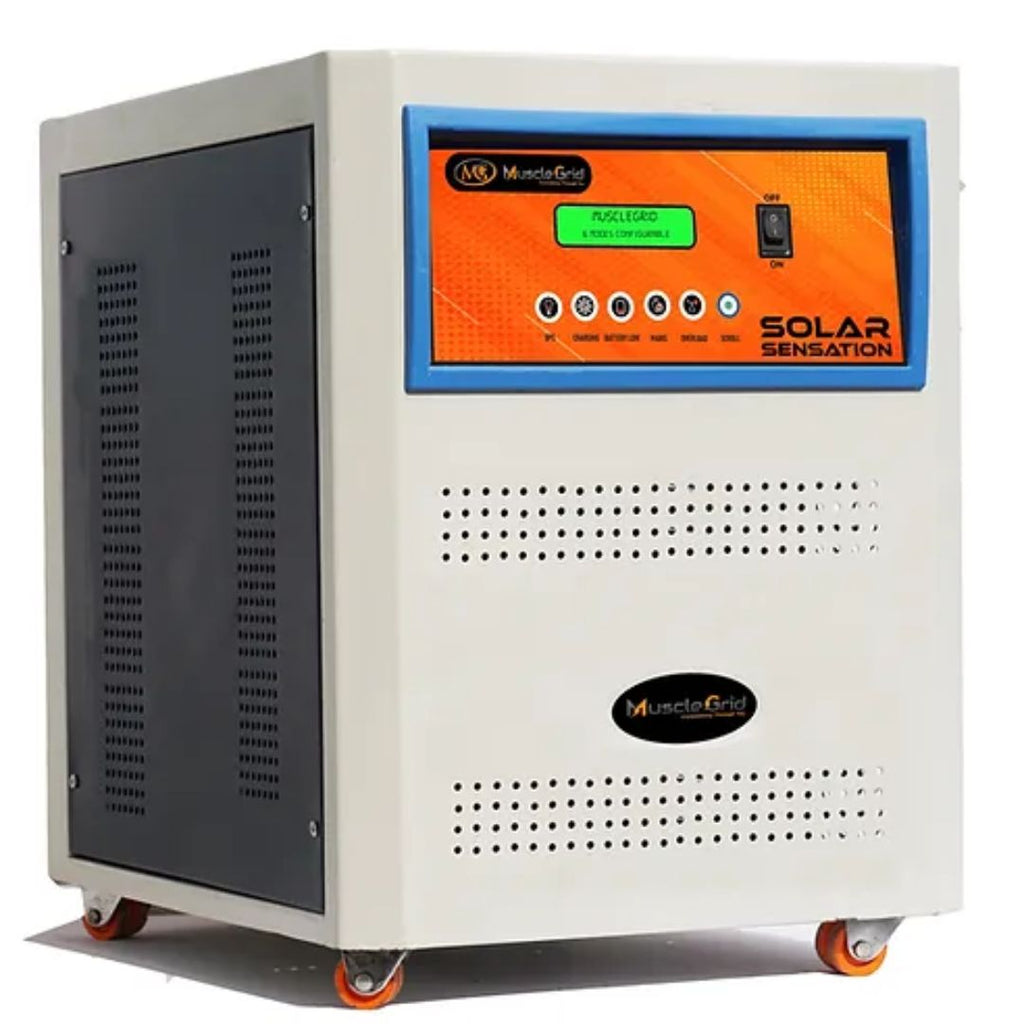

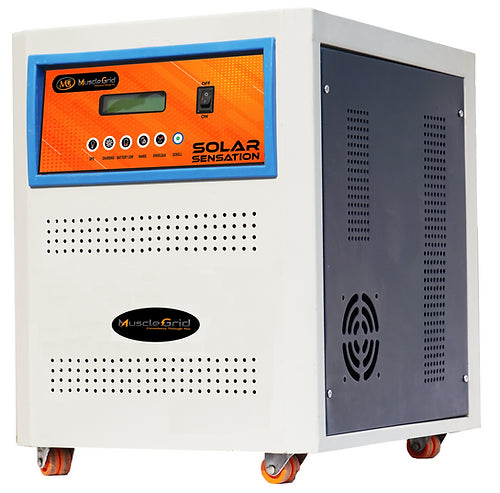

MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes
Click to zoom in

MuscleGrid India SOLAR SENSATION 4.2KVA 48V Hybrid Solar Inverter 6 AI Modes

2 sold in last 8 hours
MuscleGrid
Out of stock Many in stock
Rs. 79,999.00 Rs. 24,500.00
Rs. 24,500.00

customers are viewing this product

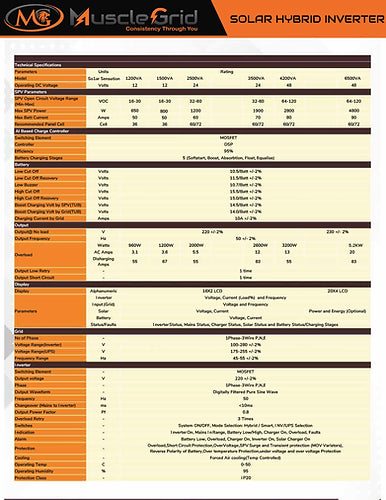

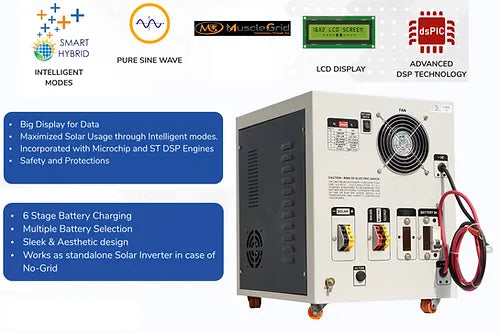

MuscleGrid India is a top brand in Voltage stabilizers, our SOLAR PCU is an integrated hybrid solar system consisting of a Solar Charge Controller, Inverter and an AC Mains Charger. Batteries are charged either through Solar / Grid / DG set or with sharing of current. System gives priority to Solar Power first and uses Grid power only when Solar Power / Battery Charge is insufficient to meet the load requirements. Solar Power output and the load are continuously monitored. When batteries are charged to the preset level the Solar UPS automatically cuts off from the system and load runs through the UPS using the batteries. Maximum battery charging is done through the solar to reduce the energy used from grid power. This is a DSP Technology based pure sinewave 48V-4.2KVA hybrid solar inverter cum PCU which is mostly used for running lighting, home loads and even water pumps of upto 2HP however only 5 star inverter type air conditioners can be run. Inverter is very easy to configure according to needs. SPV Open Circuit Voltage Range (Min-Max) - 64-120V Max SPV Power 2400 Max Batt Current 50A Recommended Panel Cell 60/72 Switching Element MOSFET Controller DSP Efficiency 95% Battery Charging Stages 5 (Softstart, Boost, Absorbtion, Float, Equalise) Battery Low Cut Off 10.5/Batt+/-2% Low Cut Off Recovery 11.5/Batt+/-2% Low Buzzer 10.7/Batt+/-2% High Cut Off 15.5/Batt+/-2% High Cut Off Recovery 15.0/Batt+/-2% Boost Charging Volt by SPV(TUB) 14.5/Batt+/-2% Boost Charging Volt by Grid(TUB) 14.0/Batt+/-2% Charging Current by Grid 10A+/-2% Output Output@ No load 220 +/-2% Output Frequency 50 +/- 2% Overload Watts 3.2KW AC Amps 13.9 Discharging Amps 67 Output Low Retry 1 time Output Short Circuit 2 time Voltage Range(lnverter) 100-280 +/-2% Voltage Range(UPS) 175-255 +/-2% Inverter Switching Element MOSFET Output voltage 220 +/-2% Phase 1Phase-3Wire P,N,E Output Waveform Digitally Filtered Pure Sine Wave Frequency 50 Changeover (Mains to Inverter) <10ms Output Power Factor 0.8 Overload Retry 3 Times Switches System ON/OFF, Mode Selection: Hybrid / Smart, INV /UPS Selection Indication Inverter On, Mains In Range, Battery Low/High, Charger On, Overload, Faults Alarm Battery Low, Overload, Charger On, Inverter On, Solar Charger On Protection Overload,Short Circuit Protection,Over Voltage,SPV Surge and Transient protection (MOV Varistors), Reverse Polarity of Battery,Over temperature Protection,under voltage and over voltage Protection Cooling Forced Air cooling(Temp Controlled) Operating Temp 0-50 Operating Humidity 95 Protection Class IP20
Read More
Read Less

1. General

Likely to stock accessibility. We are keeping up with exact stock depends on our site however occasionally there might be a stock disparity and we can not satisfy every one of your things at season of procurement. In this case, we will satisfy the accessible items to you, and get in touch with you concerning whether you would like to anticipate restocking of the put in a raincheck for thing or then again on the off chance that you would like for us to handle a discount.

2. Shipping Costs

We offer free shipping across India.

3. Returns

3.1 Return Due To Change Of Mind

If you are entitled to a replacement, we will replace the product.

You are qualified for returning of order inside 7 days from the date on which you received it with receipt or verification of procurement, we will process the returns. While returning, customer will bear the shipping charges from one side. It is advised to pack the product with all accessories that came along with the stabilizer to get full refund. If the product found to be used then customer will get the amount refunded as per the usage conditions. We will advise you whenever this has been finished through email. In case customer require reverse pickup services for refunds then he can get home pickup service which will be charged at 10% of the original invoice amount or actual shipping rates, whichever is higher. Nominal shipping rates are INR 100 per Kg.

4. Delivery Terms

4.1 Transit Time Domestically

In general, domestic shipments are in transit for 3 - 8 days.

4.2 Dispatch Time

Orders are usually dispatched within 1 - 2 business days of realization of the payment of order.

Our warehouse operates on Monday - Saturday during standard business hours, except on national holidays at which time the warehouse will be closed. In these instances, we take steps to ensure shipment delays will be kept to a minimum.

4.3 Change Of Delivery Address

For change of delivery address requests, we are able to change the address at any time before the order has been dispatched.

 4.4 Items Out Of Stock

If an item is out of stock, we will wait for the item to be available before dispatching your order. Existing items in the order will be reserved while we await this item.

4.5 Delivery Time Exceeded

If delivery time has exceeded the forecasted time, please contact us so that we can conduct an investigation.

5. Tracking Notifications

Upon dispatch, customers will receive a tracking link from which they will be able to follow the progress of their shipment based on the latest updates made available by the shipping provider.

6. Parcels Damaged In Transit

If you find a parcel is damaged in-transit, if possible, please reject the parcel from the courier and get in touch with our customer service. If the parcel has been delivered without you being present, please contact customer service with next steps.

7. Duties & Taxes

7.1 GST

GST has already been applied to the price of the goods as displayed on the website.

 8. Customer service

For all customer service enquiries, please What's App us at +91 9999036254 and we will help you on priority.

REFUND POLICY

Warranty Instructions

In case of any assistance needed, customer can email at info@musclegridindia.com and he will get a call back in 24 to 48 hours.

Replacement Process

In the event that your replacement demand is supported, we will start a pickup of customer’s old unit from a similar location as enlisted with us that is the location on which customer’s request was conveyed, pickup will be finished by our dispatch accomplices that will call the customer and will pick up the old unit from their location. When the old unit is picked up, customer can inform us and offer us the receipt given by the courier pickup person, when you submit us the receipt, we will organize to send new unit on a similar location and will inform you about the courier tracking. We give just 1 time replacement if there is any manufacturing defect in the unit. One side shipping cost is borne by the customer. We also offer premium service where he has the option to get it picked from his door step and that will be charged at 10% of the original invoice amount.  All other replacements will be chargeable @ 25% of the first price tag, inside the guaranteed time frame or out of guarantee by and large.
